PA12 nylon bundy tube

Shape:straight length(0.3m-5.8m), ready-made tube ( Customized according to different customer requests)
Typical specifications are φ4.76*0.7, φ6*0.7, φ6.35*0.7, φ8*0.7, other sizes can be customized
Surface treatment:silver zinc plated+ PA12 nylon coating

规格:	3/16''0.7mm 60.7mm 1/4''0.7mm 5/16''0.7mm
Quantity:



Inquire Add to Basket

standards :
GM124M, ASTM A254, SAE J527
Material:
low carbon steel
Type:
brake & fuel lines
coating thickness:
150um-200um
Advantage:
highly corossion resistance

Product Description

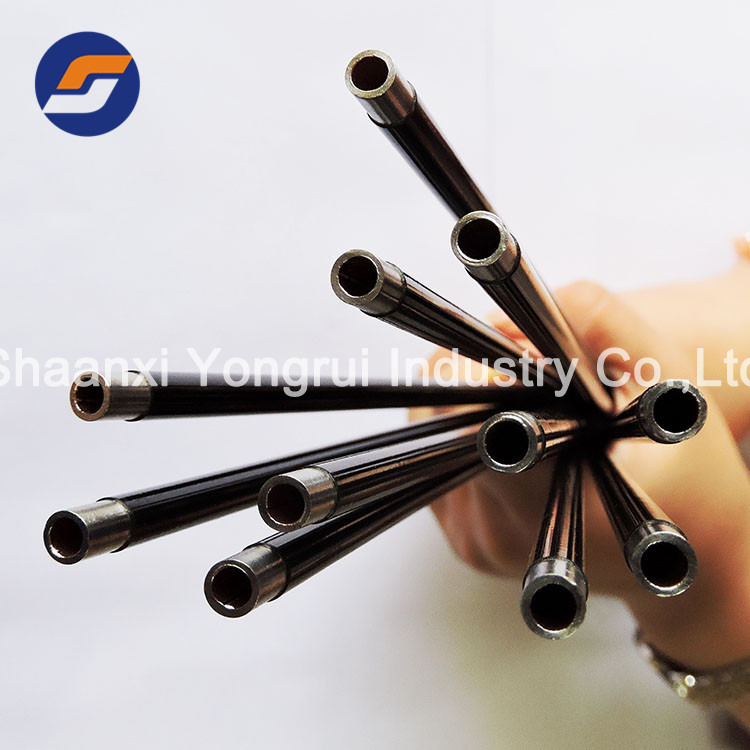

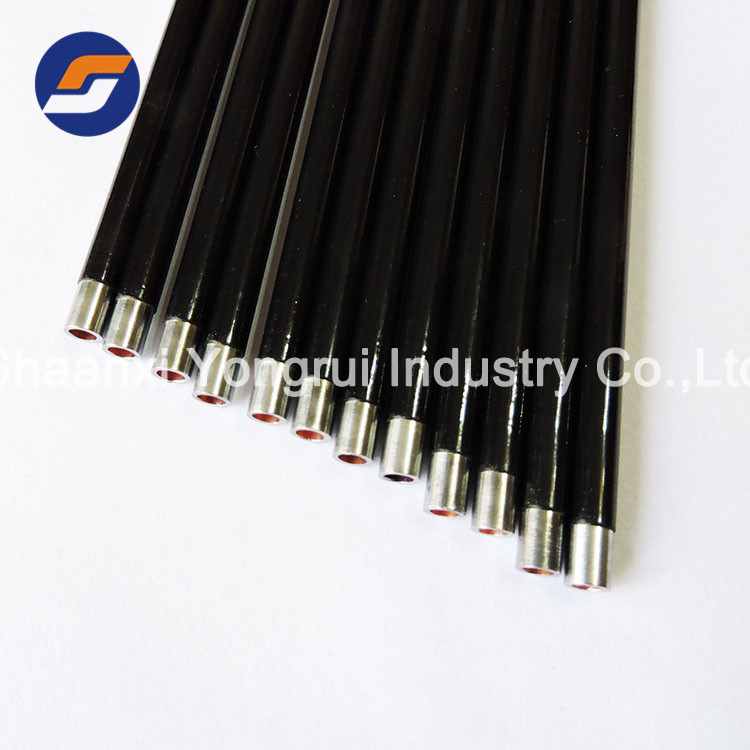

PA12 nylon Bundy tube is coated with organic material PA12 on the outer surface of the double wall copper brazed white zinc plated tube. The most common PA12 granular is transparent and black. The black PA12 tubes were widely used in vehicles.
 PA12 coated double wall bundy tube can be used for fuel lines,brake lines,oil lines of Automotive uses,cooling units of refrigeration uses ect.

Coating and Test Performance

We strongly confidence with our tubing as following strict test performance.
 PA12 nylon Bundy tube, the most significant advantage is that the nylon layer coating thickness is between 150 μm -200 μm, which ensures its stronger corrosion resistance and abrasion resistance.

 Salt spray testing time is performance far away better than PVF coating tube, so this standard can better meet high-quality customers' exclusive requirements.

 Our PA12 coated steel Bundy tubing is available in outer diameters 4.76mm, 6mm, 6.35mm, 8mm with wall thicknesses 0.028″.

 Our factory strictly complies with the international standard production process, fully conforms to the national standards GBT 34020.2-2017, GM124M, ASTM A254, SAE J527, and adopts strict quality control measures for the entire process of raw material procurement, manufacturing process, product inspection, and packaging.

 Because of the top quality guaranteed, We received highly praised from our clients both at home and abroad.

 Variety stock for PA12 nylon Bundy tubing: Coil, Pancake coil,Cut to length,and custom shaped brake tubing.
